Rental LED Display ORA Series
High quality designed with vivid image and excellent high protective model.

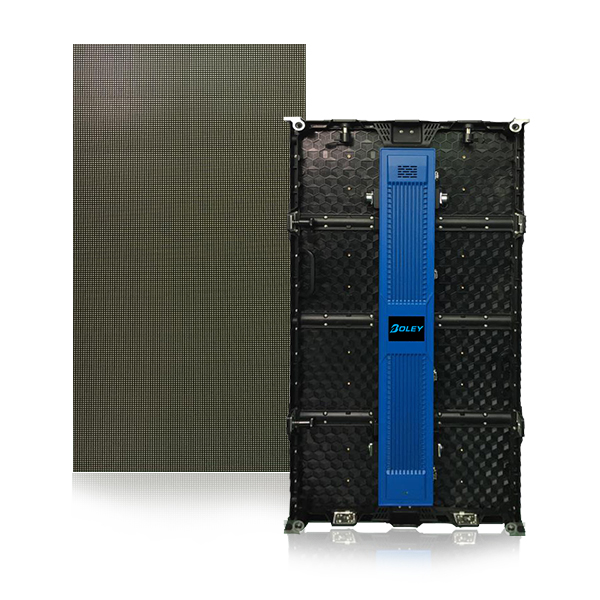

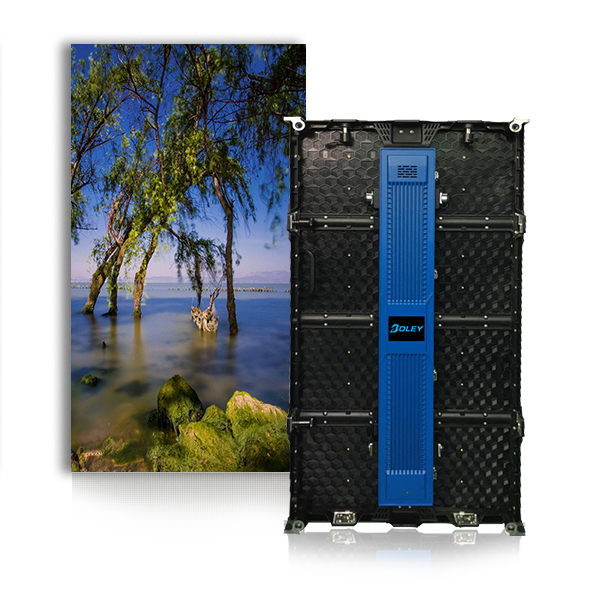

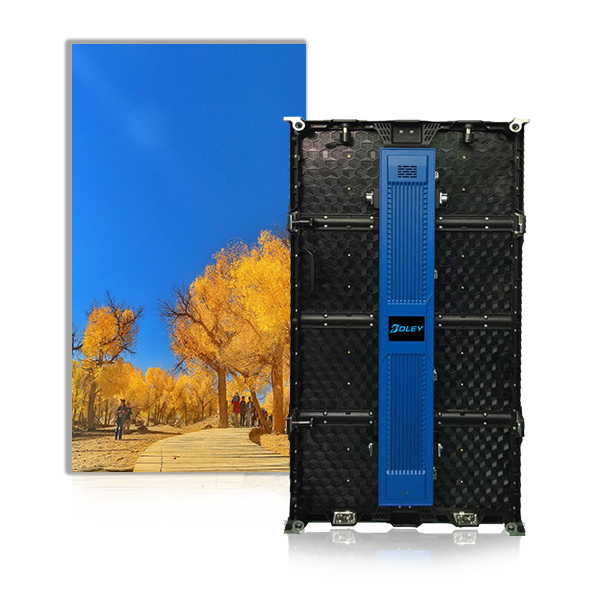

LED cabinet
- Lighter and thinner;
- Die-casting aluminum strong rental cabinet;
- Proprietary locking system, more solid, more accurate;
- Rear Module maintenance, easy to replace module
- 1000mm×1000mm rental cabinet, easy for calculation and assemble;
Screen
- Vivid video performance and expressive watching experience without white or dark lines；
- High refresh rate more than 2000 Hz;
- Frameless LED screen design contribute to completely seamless outstanding image quality, can easily catch attraction of the passers and audience;
- Easily Repairable by substitution components provided by BOLEY;
Design advantage
- The Rental LED display can be designed to meet different clients' diversified needs and requirements.
- Front installation and maintenance is available by adjusting the design of the cabinets;
- The cabinet of the LED screen can change the design to meet the needs of the installation environment;
- Seamless connection between 2 cabinets;
- Fast lock for quick and easy installation of the LED rental screen ;
- Assemble easily within 10 seconds.
Installation
Support multiple installation methods: on the poles, against the wall, or on the floor;

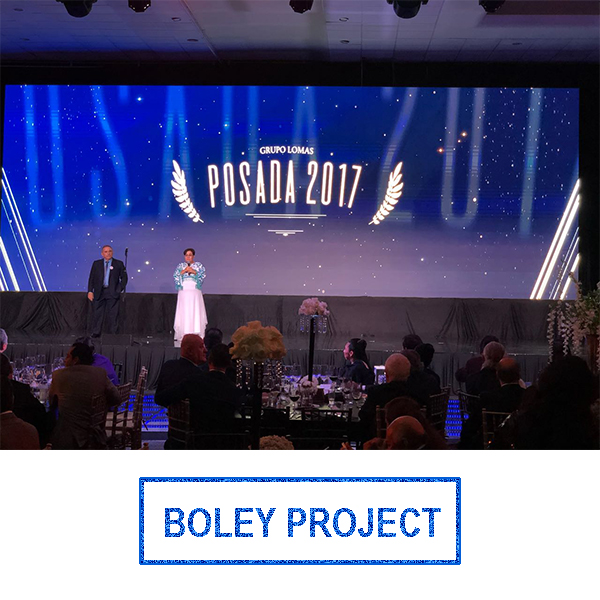

Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Detailed specification
|
Pixel Pitch |
3.91mm |
4.81mm |
|
Pixel Configuration |
SMD3-in-1 |
SMD3-in-1 |
|
Environment |
Indoor /Outdoor |
Indoor/Outdoor |
|
Pixel Density |
65536 dots/m2 |
43222 dots/m2 |
|
Module Resolution |
64x64 dots |
52x52 dots |
|

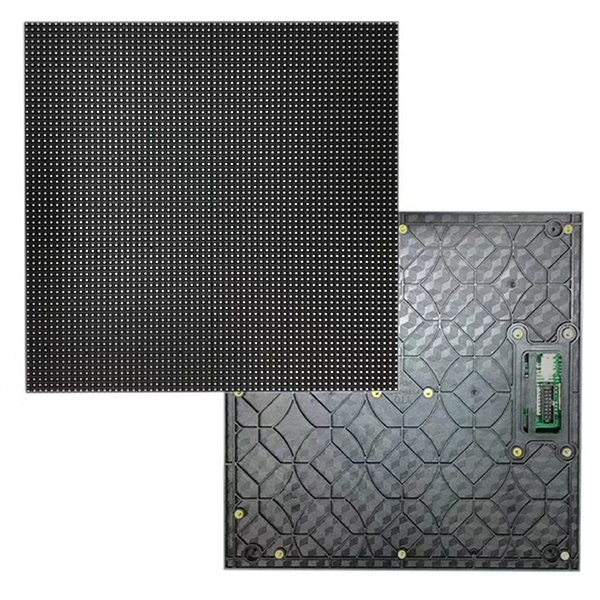

Module Size |
250x250 mm |
250x250 mm |
|
Cabinet Resolution |
128x256 dots |
104x208 dots |
|
Cabinet Size |
1000x1000 mm |
1000x1000 mm |
|
Cabinet Material |
Die- Casting Aluminum |
Die -Casting Aluminum |
|
Viewing Distance |
>3 m |
>4 m |
|
Viewing Angle |
H140°V140° |
H140°V140° |
|
Refresh Rate |
≥2,000 Hz |
≥2,000 Hz |
|
Maximum Power Consumption |
<1000 W/m2 |
<800 W/m2 |
|
Drive Mode |
Constant current 1/16 |
Constant current 1/13 |
|
Brightness |
Indoor screen ≥1,500 nits; Outdoor screen ≥5,500 nits; |
Indoor screen ≥1,500 nits; Outdoor screen ≥5,500 nits; |
|
Input Voltage |
AC100-240V/50-60Hz |
|
|
Life Span |
100,000 hours |
|
|
Working Temperature |
-20°C to 60°C |
|
|
Working Humidity |
10%RHto 90%RH |
|
|
Gray Scale |
14 bit |
|
|
IP Grade |
Indoor : IP31 Outdoor:IP66 |
|

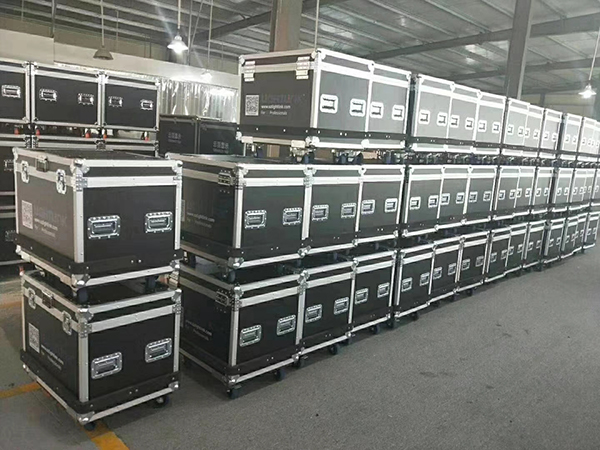

Package: Flightcases
