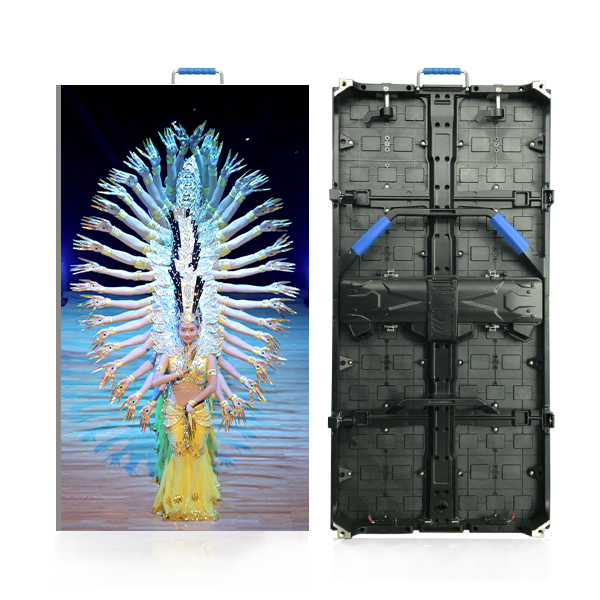

Rental LED Display ORB Series
High quality designed with vivid image and excellent high protective model.

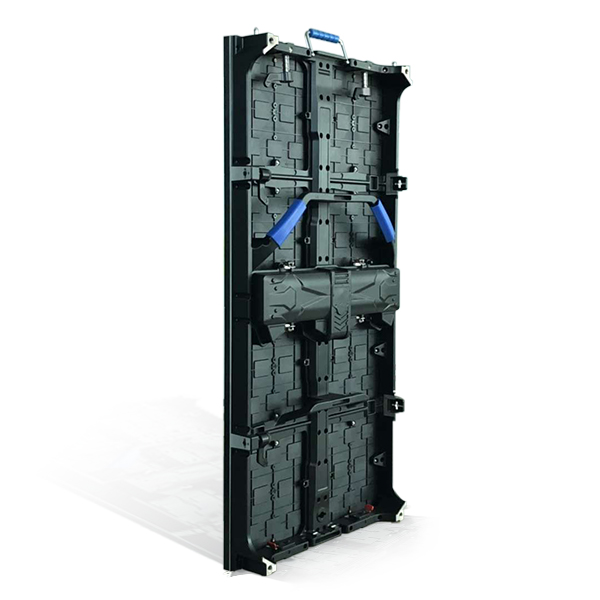

LED cabinet
- Die-casting aluminum strong rental cabinet;
- Proprietary locking system, more solid, more accurate;
- Rear Module maintenance, easy to replace module
- 1000mm×1000mm rental cabinet, easy for calculation and assemble;
Screen
- Vivid video performance and expressive watching experience without white or dark lines;
- High refresh rate more than 2000 Hz;
- Frameless LED screen design contribute to completely seamless outstanding image quality, can easily catch attraction of the passers and audience;
- Easily Repairable by substitution components provided by BOLEY;
Design advantage
- The Rental LED display can be designed to meet different clients' diversified needs and requirements.
- Front installation and maintenance is available by adjusting the design of the cabinets;
- The cabinet of the LED screen can change the design to meet the needs of the installation environment;
- Seamless connection between 2 cabinets;
- Fast lock for quick and easy installation of the LED rental screen ;
- Assemble easily within 10 seconds.
Installation
Support multiple installation methods: on the poles, against the wall, or on the floor;
Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Detailed specification
|
Pixel Pitch
|
3.91mm
|
4.81mm
|
|
Pixel Configuration
|
SMD3-in-1
|
SMD3-in-1
|
|
Environment
|
Indoor /Outdoor
|
Indoor/Outdoor
|
|
Pixel Density
|
65536 dots/m2
|
43222 dots/m2
|
|
Module Resolution
|
64x64 dots
|
52x52 dots
|
|
Module Size
|
250x250 mm
|
250x250 mm
|
|
Cabinet Resolution
|
128x256 dots
|
104x208 dots
|
|
Cabinet Size
|
1000x1000 mm
|
1000x1000 mm
|
|
Cabinet Material
|
Die- Casting Aluminum
|
Die -Casting Aluminum
|
|
Viewing Distance
|
>3 m
|
>4 m
|
|
Viewing Angle
|
H140°V140°
|
H140°V140°
|
|
Refresh Rate
|
≥2,000 Hz
|
≥2,000 Hz
|
|
Maximum Power Consumption
|
<1000 W/m2
|
<800 W/m2
|
|
Drive Mode
|
Constant current 1/16
|
Constant current 1/13
|
|
Brightness
|
Indoor screen ≥1,500 nits;
Outdoor screen ≥5,500 nits;
|
Indoor screen ≥1,500 nits;
Outdoor screen ≥5,500 nits;
|
|
Input Voltage
|
AC100-240V/50-60Hz
|
|
|
Life Span
|
100,000 hours
|
|
|
Working Temperature
|
-20°C to 60°C
|
|
|
Working Humidity
|
10%RHto 90%RH
|
|
|
Gray Scale
|
14 bit
|
|
|
IP Grade
|
Indoor : IP31 Outdoor:IP66
|
|

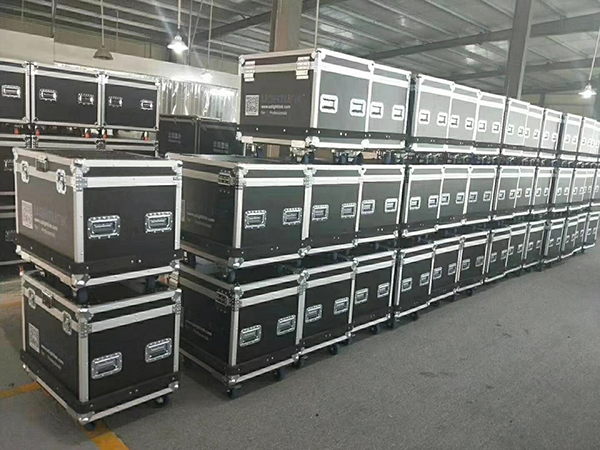

Package: Flightcases
