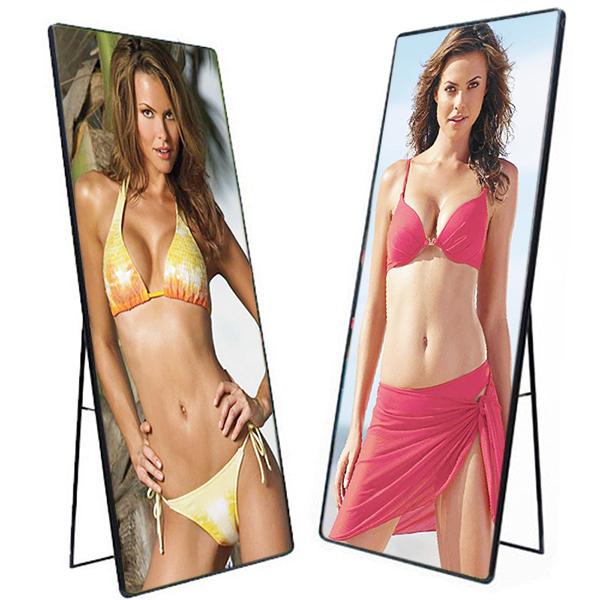

Inpa Series Poster Screen
High quality designed with vivid image and excellent high protective model.
LED cabinet
- Aluminum strong cabinet design;
- Front maintenance, easy to fix;
- Cabinet size can be made according to the clients needs.
Screen
- Vivid video performance and expressive watching experience without white or dark lines;
- High refresh rate more than 2000 Hz;
- Frameless LED screen design contribute to completely seamless outstanding image quality, can easily catch attraction of the passers;
- Easily Repairable by substitution components provided by BOLEY;
Design advantage
- The screen can be designed to meet different clients' diversified needs and requirements.
- Front installation and maintenance is available;
- The cabinet can change the design to meet the needs of the installation environment;
- Seamless connection between modules;
- Quick and easy installation;

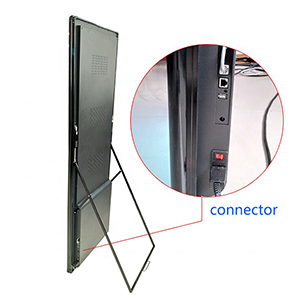

Installation
Support multiple installation methods: on the poles, against the wall, or on the floor;
Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Detailed specification
|
Pixel Pitch
|
2mm
|
2.5mm
|
3mm
|
|
Pixel Configuration
|
SMD3-in-1
|
SMD3-in-1
|
SMD3-in-1
|
|
Environment
|
Indoor
|
Indoor
|
Indoor
|
|

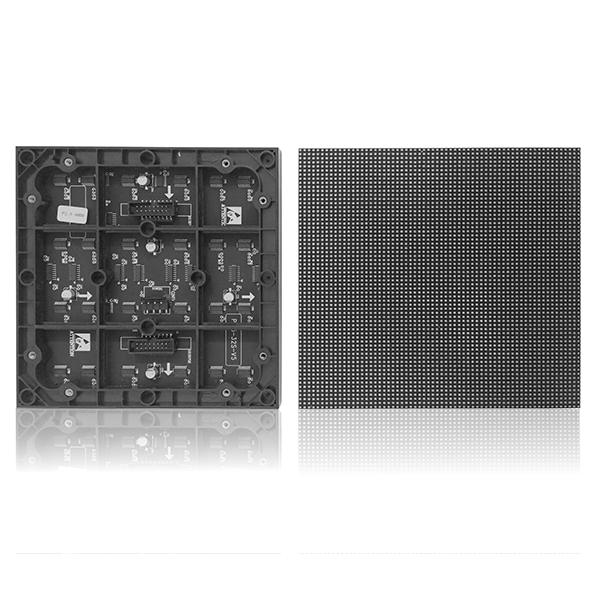

Module Resolution
|
128x64
|
128x64 dots
|
64x64 dots
|
|
Module Size
|
256x128mm
|
320x160 mm
|
192x192mm
|
|
Screen Resolution
|
896x256=229,376pixels
|
256x640=163,840 pixels
|
192x576=110,592 pixels |
|
Screen Size
|
512x1792mm |
640x1600mm |
576x1728mm |
|
Cabinet Material
|
Aluminum
|
Aluminum
|
Aluminum
|
|
Viewing Distance
|
>2 m
|
>2 m
|
>3 m
|
|
Viewing Angle
|
H140°V140°
|
H140°V140°
|
H140°V140°
|
|
Refresh Rate
|
≥2,000 Hz
|
≥2,000 Hz
|
≥2,000 Hz
|
|
Average Power Consumption
|
<250 W
|
<250 W
|
<250 W
|
|
Brightness
|
Indoor screen ≥1,500 nits;
|
Indoor screen ≥1,500 nits;
|
Indoor screen ≥1,500 nits;
|
|
Input Voltage
|
AC100-240V/50-60Hz
|
AC100-240V/50-60Hz
|
AC100-240V/50-60Hz
|
|
Life Span
|
100,000 hours
|
100,000 hours
|
100,000 hours
|
|
Working Temperature
|
-20°C to 60°C
|
-20°C to 60°C
|
-20°C to 60°C
|
|
Working Humidity
|
10%RHto 90%RH
|
10%RHto 90%RH
|
10%RHto 90%RH
|
|
Gray Scale
|
14 bit
|
14 bit
|
14 bit
|
|
IP Grade
|
IP31
|
IP31
|
IP31
|
