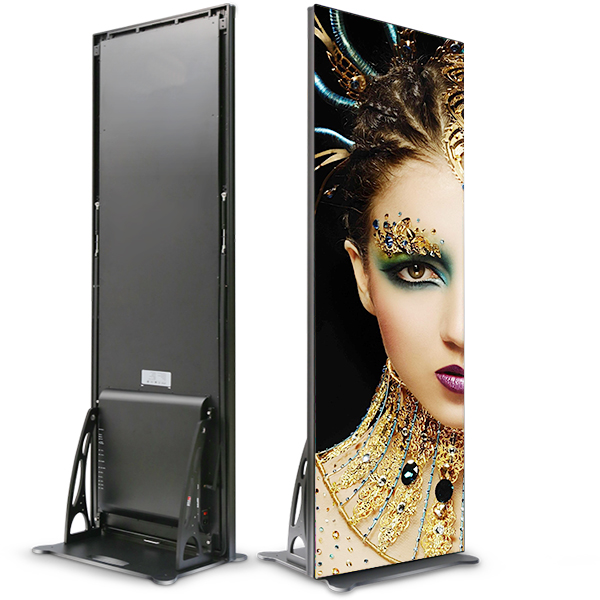

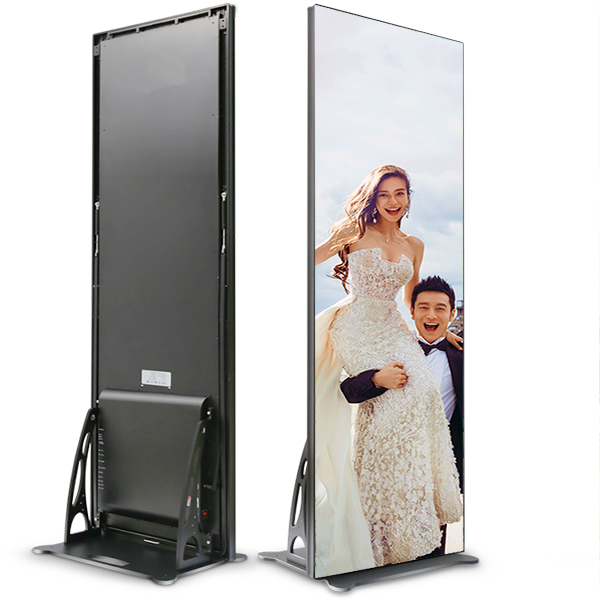

Inpo Series Poster Screen

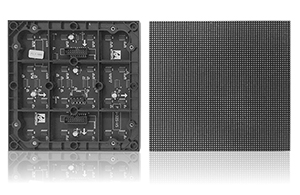

Module
High quality designed with vivid image and excellent high protective model.

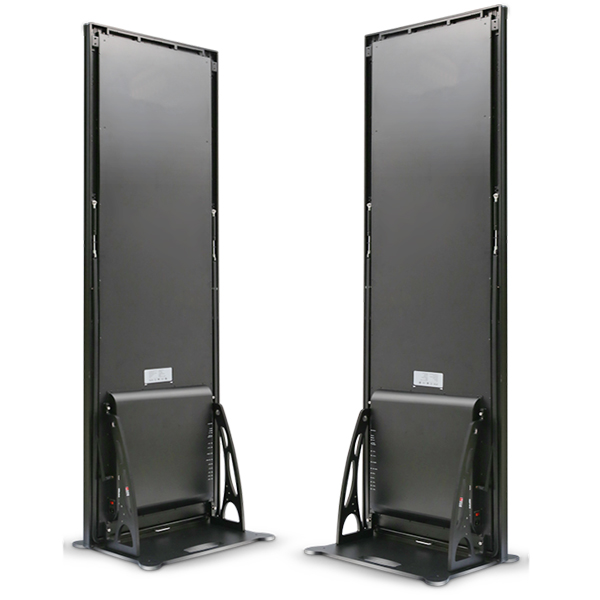

LED cabinet
- Lighter and thinner
- Aluminum strong cabinet design;
- Front maintenance, easy to fix;
- Cabinet size can be made according to the clients needs.
Screen
- Vivid video performance and expressive watching experience without white or dark lines;
- High refresh rate more than 2000 Hz;
- Frameless LED screen design contribute to completely seamless outstanding image quality, can easily catch attraction of the passers;
- Easily Repairable by substitution components provided by BOLEY;
Design advantage
- The screen can be designed to meet different clients' diversified needs and requirements.
- Front installation and maintenance is available;
- The cabinet can change the design to meet the needs of the installation environment;
- Seamless connection between modules;
- Quick and easy installation;
Installation
Support multiple installation methods: on the poles, against the wall, or on the floor;
Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Detailed specification
|
Pixel Pitch |
2mm |
2.5mm |
3mm |
|
Pixel Configuration |
SMD3-in-1 |
SMD3-in-1 |
SMD3-in-1 |
|
Environment |
Indoor |
Indoor |
Indoor |
|
Module Resolution |
128x64 |
128x64 dots |
64x64 dots |
|
Module Size |
256x128mm |
320x160 mm |
192x192mm |
|
Screen Resolution |
896x256=229,376pixels |
256x640=163,840 pixels |
192x576=110,592 pixels |
|
Screen Size |
512x1792mm |
640x1600mm |
576x1728mm |
|
Cabinet Material |
Aluminum |
Aluminum |
Aluminum |
|
Viewing Distance |
>2 m |
>2 m |
>3 m |
|
Viewing Angle |
H140°V140° |
H140°V140° |
H140°V140° |
|
Refresh Rate |
≥2,000 Hz |
≥2,000 Hz |
≥2,000 Hz |
|
Average Power Consumption |
<250 W |
<250 W |
<250 W |
|
Brightness |
Indoor screen ≥1,500 nits; |
Indoor screen ≥1,500 nits; |
Indoor screen ≥1,500 nits; |
|
Input Voltage |
AC100-240V/50-60Hz |
AC100-240V/50-60Hz |
AC100-240V/50-60Hz |
|
Life Span |
100,000 hours |
100,000 hours |
100,000 hours |
|
Working Temperature |
-20°C to 60°C |
-20°C to 60°C |
-20°C to 60°C |
|
Working Humidity |
10%RHto 90%RH |
10%RHto 90%RH |
10%RHto 90%RH |
|
Gray Scale |
14 bit |
14 bit |
14 bit |
|
IP Grade |
IP31 |
IP31 |
IP31 |
