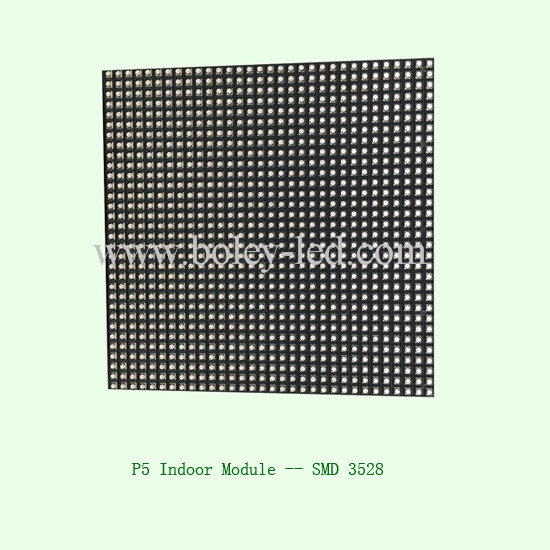

LED module-- SMD indoor
| Pixel Pitch | 4 mm | 5 mm | 6 mm | 7.62 mm | 10 mm |
| Pixel Configuration | SMD2121 3-in-1 | SMD3528 3-in-1 | SMD3528 3-in-1 | SMD3528 3-in-1 | SMD3528 3-in-1 |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Pixel Density | 62,500 dots/m2 | 40,000 dots/m2 | 27,777 dots/m2 | 17,222 dots/m2 | 10,000 dots/m2 |
| Module Resolution | 64x32 dots | 32x32 dots | 32x16 dots | 32x16 dots | 16x16 dots |
| Module Size | 256x128 mm | 160x160 mm | 192x96 mm | 244x122 mm | 160x160 mm |
| Viewing Distance | ＞4m | ＞5m | ＞6m | ＞7m | ＞10m |
| Viewing Angle | H120°V120° | H120°V120° | H120°V120° | H120°V120° | H120°V120° |
| Refresh Rate | ≥1,200 Hz | ≥1,200 Hz | ≥1,200 Hz | ≥1,200 Hz | ≥1,200 Hz |
| Drive Mode | Constant current | Constant current | Constant current | Constant current | Constant current |
| Brightness | ≥1,800 CD/㎡ | ≥2,,000 CD/㎡ | ≥1,800 CD/㎡ | ≥1,300 CD/㎡ | ≥1,500 CD/㎡ |
