Indoor Fixed Installation Screen

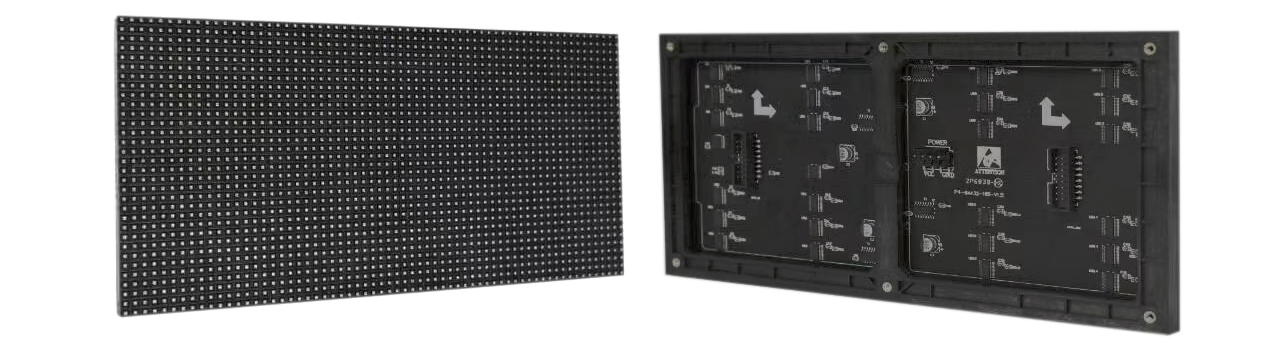

Module
High quality designed with vivid image and excellent high protective model.

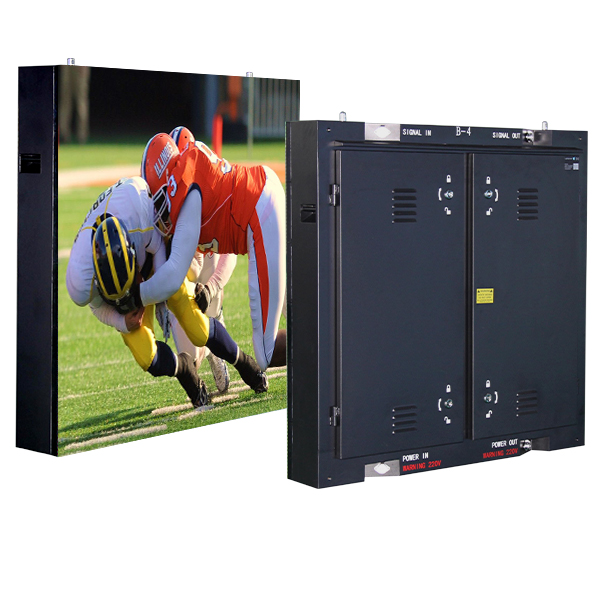

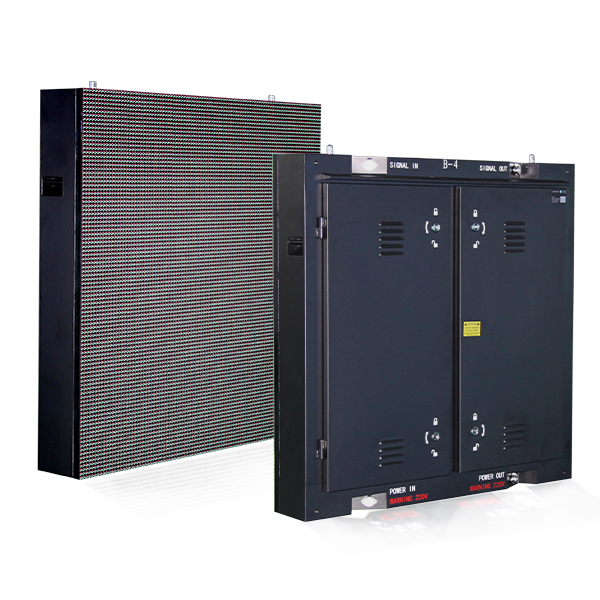

LED cabinet
1.Lighter and thinner;
2.Front and rear maintenance available;
3.Optional iron or aluminum cabinet for fixed installation;
Screen
1.Vivid video performance andexpressive watching experience without white or dark lines;
2.High refresh rate more than 2000 Hz;
3.Frameless LED screen design contribute to completely seamless outstanding image quality, which can easily catch attraction of the passers;
4.Easily Repairable by substitution components with the spare parts provided by BOLEY;
Design advantage
1.The screen can be designed to meet different clients' diversified needs and requirements.
2.Front installation and maintenance is available by change the design of the cabinets;
3.The cabinet can be changed the design to meet the needs of the installation environment;
4.Seamless connection between 2 cabinets;

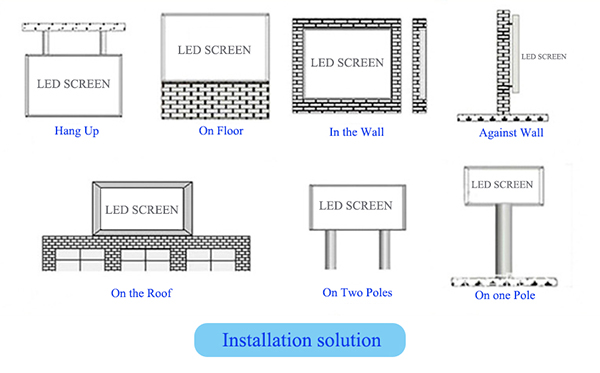

Installation
Support multiple installation methods: on the poles, against the wall, or on the floor;
Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Detailed specification
|
Pixel Pitch
|
4 mm
|
5 mm
|
6 mm
|
10 mm
|
|
Pixel Configuration
|
SMD2121 3-in-1
|
SMD3528 3-in-1
|
SMD3528 3-in-1
|
SMD3528 3-in-1
|
|
Environment
|
Indoor
|
Indoor
|
Indoor
|
Indoor
|
|
Pixel Density
|
62,500 dots/m2
|
40,000 dots/m2
|
27,777 dots/m2
|
10,000 dots/m2
|
|
Module Resolution
|
32x32 dots
|
32x32 dots
|
32x16 dots
|
16x16 dots
|
|
Module Size
|
128x128 mm
|
160x160 mm
|
192x96 mm
|
160x160 mm
|
|
Cabinet Resolution
|
160x160 dots
|
128x128 dots
|
96x96 dots
|
64x64 dots
|
|
Cabinet Size
|
640x.640 mm
|
640x640 mm
|
576x576 mm
|
640x640 mm
|
|
Cabinet Material
|
Iron/Aluminum
|
|||
|
Viewing Distance
|
＞4m
|
＞5m
|
＞6m
|
＞10m
|
|
Viewing Angle
|
H120°V120°
|
|||
|
Refresh Rate
|
≥2000 Hz
|
≥2000 Hz
|
≥2000 Hz
|
≥2000 Hz
|
|
Maximum Power Consumption
|
790 W/㎡
|
610 W/㎡
|
760 W/㎡
|
590 W/㎡
|
|
Average Power Consumption
|
275 W/㎡
|
215 W/㎡
|
265 W/㎡
|
205 W/㎡
|
|
Drive Mode
|
Constant current
|
Constant current
|
Constant current
|
Constant current
|
|
Brightness
|
≥1,200 CD/㎡
|
≥1,800 CD/㎡
|
≥1,800 CD/㎡
|
≥1,500 CD/㎡
|
|
Input Voltage
|
AC100-240V/50-60Hz
|
|||
|
Life Span
|
100,000 hours
|
|||
|
Working Temperature
|
-20°C～60°C
|
|||
|
Working Humidity
|
10%RH～90%RH
|
|||
|
Gray Scale
|
14 bit
|
|||
|
IP Grade
|
IP31
|
|||
Package:wood cases or flight cases
