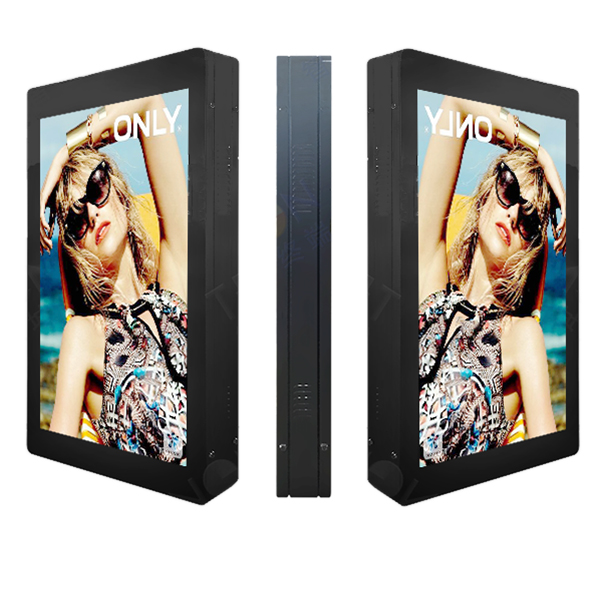

Double Sides Series
Specification
|
Pixel Pitch
|
3mm
|
4mm
|
5mm
|
|
LED
|
SMD1921
|
SMD2727
|
SMD2727
|
|
Pixel density
|
111110dot/m2
|
62500dot/m2
|
40000dot/m2
|
|
Module resolution |
64*64dot
|
48*4dot
|
32*32dot
|
|
Module size
|
192*192mm
|
192*192mm
|
160*160mm
|
|
Used environment
|
Outdoor
|
Outdoor
|
Outdoor
|
|
IP Rating
|
IP65
|
IP65
|
IP65
|
|
Scanning mode
|
15S
|
12S
|
8S
|
|
Brightness
|
5500CD/m²
|
5500CD/m²
|
5500CD/m²
|
|
Viewing angle
|
140°
|
140°
|
140°
|
|
Ave.power consumption |
300 W/m²
|
300 W/m²
|
300 W/m²
|
|
Display size
|
768*1344mm
|
768*1344mm
|
1120*1920mm |
|
Available cabinet size |
820*1830*80mm
|
820*1830*80mm
|
1240*2600mm
|
|
820*1600*40mm
|
820*1600*40mm
|
800*1600*115mm
|
|
|
Display content
|
text,video, image |
text,video, image |
text,video, image |
|
Warranty time
|
2 years
|
2 years
|
2 years
|
|
Production time
|
15 working days
|
15 working days
|
15 working days
|
|
Note:
|
1. All of the screen can be controlled wireless. 2. Different size is available. 3. The cabinet also can be redesigned according to the clients’ needs. |
||
