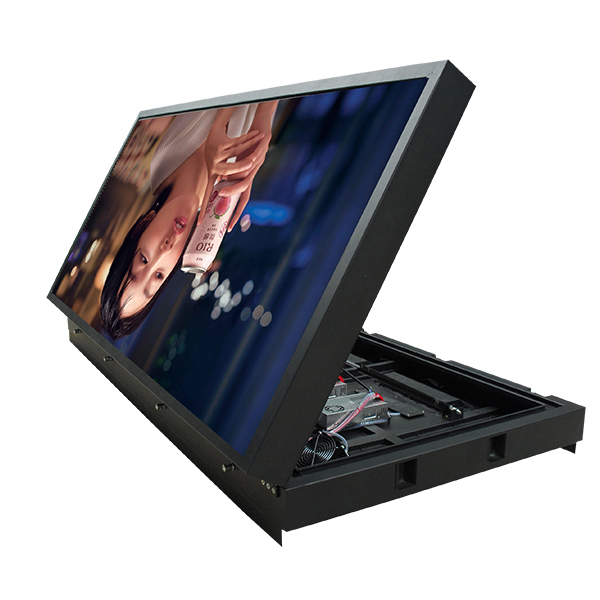

Front Accessible Screen

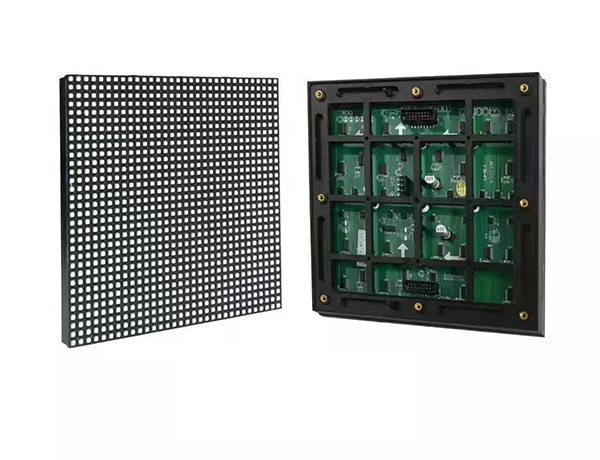

Module
High quality designed with exceptional waterproof level,and excellent high protective grades and weather resistance;

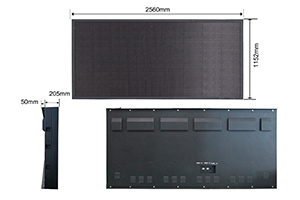

LED cabinet
lighter and thinner，front and rear maintenance available；Optional iron or aluminum cabinet available for fixed installation;
Screen
1.Vivid video performance andexpressive watching experience without white or dark lines;
2.High refresh rate more than 2000 Hz;
3.Frameless LED screen design contribute to completely seamless outstanding image quality,easily catch attraction of the passers;
4.Easily repairable by substitution components with the spare parts provided by BOLEY;
Design advantage
1.The screen can be designed to meet different clients'diversified needs and requirements.
2.Front installation and maintenance is available by change the design of the cabinets;
3.A lot of LED module specification can be selected according to the screen installation environment;

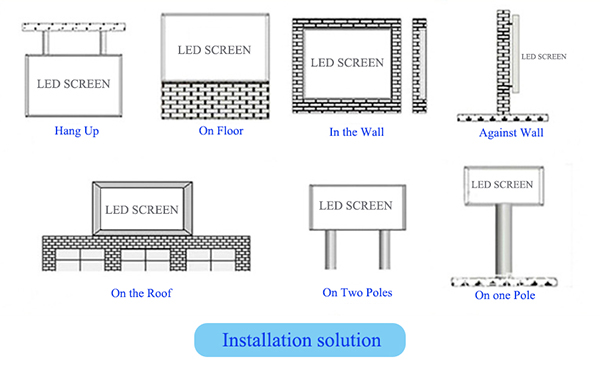

Installation
Support multiple installation methods: on the poles, against the wall, or on the floor;
Applications
Dinner Halls Lobbis / Transportation/Hospital/Shipping Malls/Conference Room/Show Room/Auditoriums/TV Studios/Fashion Stores/Electronic Store / Supper Markets/ Stages/ Shows and Events/ Concerts.
Specification
|
Pixel Pitch
|
3.91mm
|
4.81mm
|
6mm
|
10mm
|
|
Pixel Configuration
|
SMD3-in-1
|
SMD3-in-1
|
SMD3-in-1
|
SMD3-in-1
|
|
Environment
|
Indoor /Outdoor |
Indoor/Outdoor
|
Outdoor
|
Outdoor
|
|
Pixel Density
|
65536 dots/m2
|
43222 dots/m2
|
27,777 dots/m2
|
10,000 dots/m2
|
|
Module Resolution
|
64x64 dots
|
52x52 dots
|
32x32 dots
|
16x16 dots
|
|
Module Size
|
250x250 mm
|
250x250 mm
|
192x192 mm
|
160x160 mm
|
|
Cabinet Resolution
|
128x256 dots
|
104x208 dots
|
160x128 dots
|
96x96 dots
|
|
Cabinet Size
|
1000x1000 mm
|
1000x1000 mm
|
960x768 mm
|
960x960 mm
|
|
Cabinet material |
Iron/aluminum |
Iron/aluminum |
Iron/aluminum |
Iron/aluminum |
|
Viewing Distance
|
>3 m
|
>4 m
|
＞8m
|
＞10m
|
|
Viewing Angle
|
H140°V140°
|
H140°V140°
|
H120°V120°
|
H120°V120°
|
|
Refresh Rate
|
≥2,000 Hz
|
≥2,000 Hz
|
≥2,000 Hz
|
≥2,000 Hz
|
|
Maximum Power Consumption
|
<1000 W/m2
|
<800 W/m2
|
680 W/m2
|
640 W/m2
|
|
Drive Mode
|
Constant current 1/16 |
Constant current 1/13 |
Constant current
|
Constant current
|
|
Brightness
|
Indoor screen ≥1,500 nits; |
Indoor screen ≥1,500 nits; |
Outdoor screen≥ 6,000nits
|
Outdoor screen≥5,000nits
|
|
Outdoor screen ≥5,500 nits; |
Outdoor screen ≥5,500 nits; |
|||
|
Input Voltage
|
AC100-240V/50-60Hz
|
|||
|
Life Span
|
100,000 hours
|
|||
|
Working Temperature
|
-20°C to 60°C
|
|||
|
Working Humidity
|
10%RHto 90%RH
|
|||
|
Gray Scale
|
14 bit
|
|||
|
IP Grade
|
Indoor : IP31 Outdoor:IP66 |
|||
Package：By wood cases.
